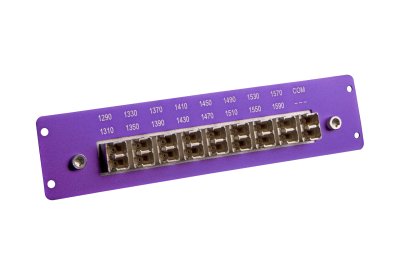

BarnOne – BTF1-41-MUX08/16

Extension card (BTF1-41)

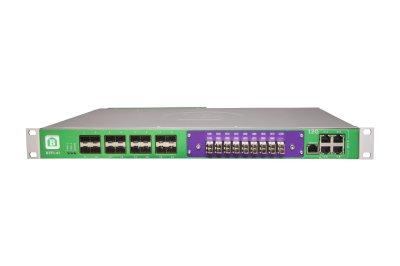

The BTF1-41-MUX08 and BTF1-41-MUX16 are extensions that can be installed inside a BarnOne BTF-41. These are optical multiplexer that combine multiple signals, regardless of formats and bandwidths into a single fiber. Signals can be transmitted in both directions simultaneously. It is a cost-effective way to increase the capacity and flexibility of the optical network.

Available in 8 or 16 channels CWDM.

Technical Specifications

Optical Ports

• LC/PC connectors
• Center Wavelengths according to ITU-T G.694.2
• Channel center wavelengths 1290 1430nm (8 ch.), 1290 1590 (16 ch.)
• Channel clear passband +/- 7nm
• Insertion Loss 8-ch: -2,5dB; 16-/18-ch: -3,5dB (max.)

Ordering code: BTF1-41-MUX08, BTF1-41-MUX16
