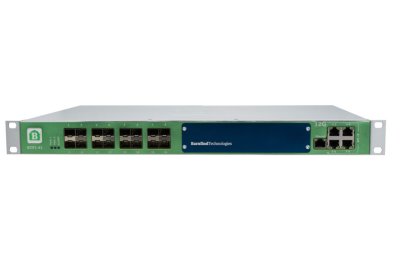

BarnOne – BTF1-41 (12G)

SKU : BarnOne – BTF1-41 (12G)

Product description

Designed to be the most flexible, rack-space saving and affordable infrastructure platform in the audio, video and communication businesses. Highly compact and equipped with an up to 32×32 cross-point router. Barnfind offer a number of configurations to combine BNC, SFP and CWDM fiber optical multiplexing.

This BarnOne frame accepts both MSA and non-MSA SFPs including optical, SDI copper, HDMI and RJ-45 Ethernet style SFP modules.

Multirate compability with maximum bitrate of up to 12G-SDI and 10G-Ethernet. This meets the demand for 4K video transmissions.

Technical Specifications

SFP ports

  • 16x SFP+ ports (enhanced small formfactor pluggable) for transceivers, MSA and non-MSA compliant, up to 12Gbps
  • SMPTE 259M, 292M, 372M, 424M, 297M, ST 2081, ST 2082, DVB-ASI
  • SFP modules are hot pluggable/swappable
  • Single-mode, multi-mode or media-converter SFP modules
  • Multirate reclocking of outputs 125Mbps 12Gbps

Extension section

Power supply

  • 12V DC 120W power supply included
  • Redundant power supply optional

Physical size

  • 445mm x 280mm x 43,5mm (17.5 x 11 x 1.7)
  • 3.8 kg

Includes

  • BTF1-41 mainframe, power supply 12V DC

Ordering code: BTF1-41
