BarnOne – BTF1-41-HDBNC

Extension card (BTF1-41)

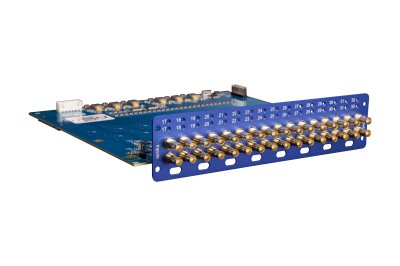

The BTF1-41-HDBNC is an extension card for BarnOne BTF1-41. It adds 16 HDBNC inputs and 16 HDBNC outputs to the 1U rackmount, expanding its capacity with additional inputs and outputs connected directly to the internal crosspoint switch.  It is ideal for applications that require a high-density of SFP+ ports and HDBNC ports, such as video production, broadcast, and telecommunications.

Technical Specifications

BNC ports

• 16x HDBNC inputs up to 12Gbps
• 16x HDBNC outputs up to 12Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M, ST 2081, ST 2082, DVB-ASI, MADI
• Multirate reclocking of outputs 125Mbps 12Gbps

Power supply

• Provided by BTF1-41 mainframe

Includes

• BTF1-41-HDBNC extension board for BTF1-41

Ordering code: BTF1-41-HDBNC
