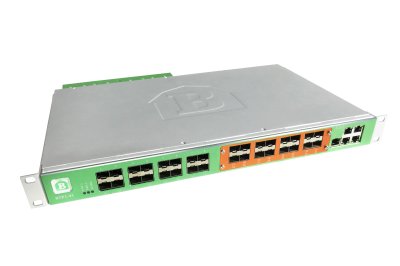

BarnOne – BTF1-41-SFP16

Extension card (BTF1-41)

The BTF1-41-SFP16 is an extension board for BarnOne BTF1-41. It adds 16 more SFP cages expanding the capabilities from 16 to 32 transceiver SFP cages.

Technical Specifications

SFP ports

• 16x SFP+ ports (enhanced small formfactor pluggable) for transceivers, MSA and non-MSA compliant, up to 12Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M, ST 2081, ST 2082, DVB-ASI
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules
• Multirate reclocking of outputs 125Mbps 12Gbps

Power supply

• Provided by BTF1-41 mainframe

Includes

• BTF1-41-SFP16 extension board for BTF1-41

Ordering code: BTF1-41-SFP16
