BarnMini – 07

SKU : BarnMini – 07

Product description

Optical Multiplexer (de-multiplexer)

The BarnMini series are made of robust materials in an elegant design. BarnMini-07 is a 4-channel CWDM mulitplexer that can be used for e.g. transportation of 4x optical SDI, ASI, MADI or data on one single fiber.

Mutliple BarnMini-07 can be combined to make an even bigger multiplexer and it is comptabible with the ITU CWDM standard.

All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.

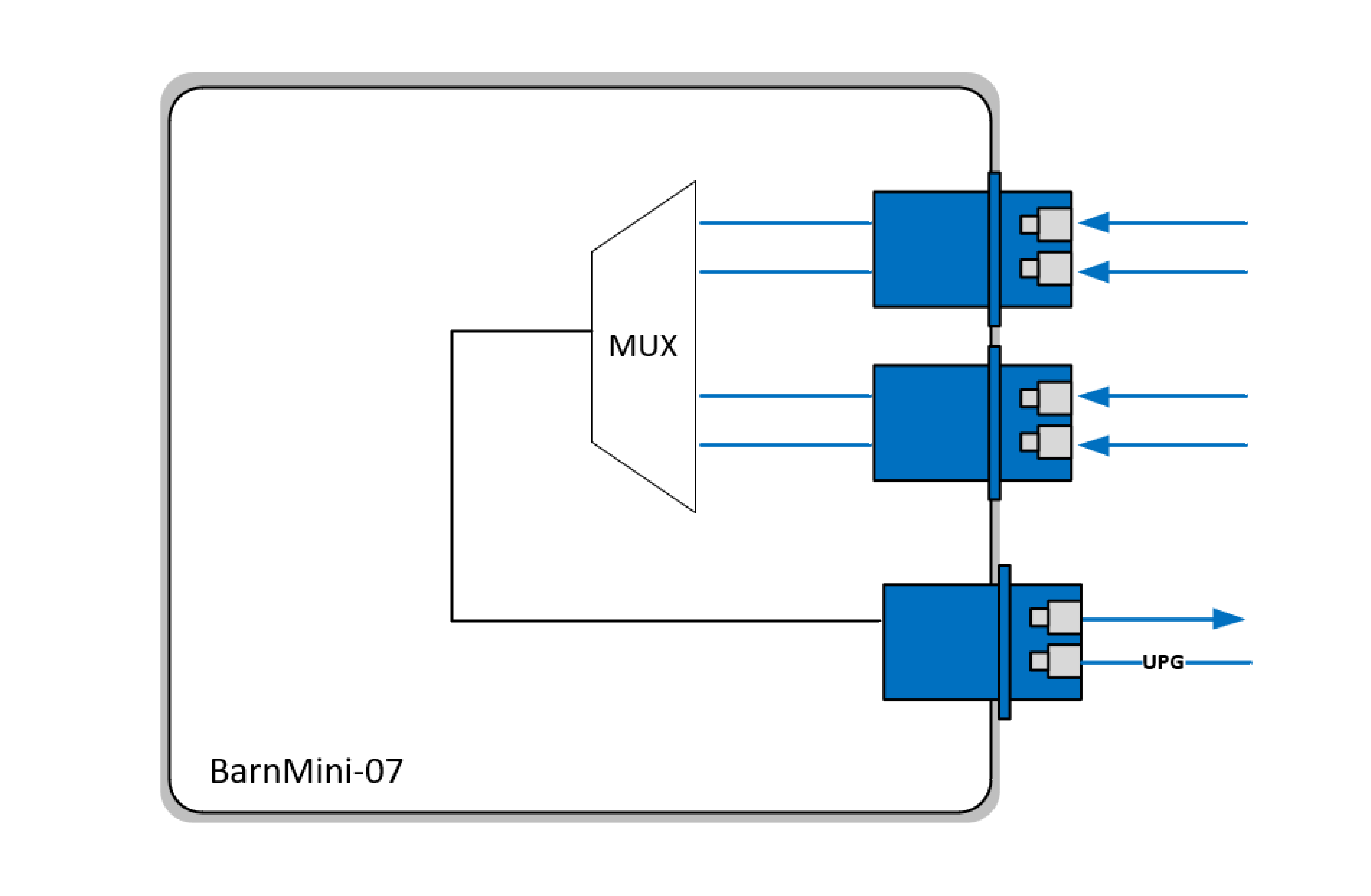

Block Diagram

Technical Specifications

Optical ports

  • LC/PC connectors
  • BarnMini-07-2935: (1290, 1310, 1330 and 1350) according to ITU-T G694.2
  • BarnMini-07-3743: (1370, 1390, 1410 and 1430) according to ITU-T G694.2
  • Channel clear passband +/-6,5nm
  • Insertion Loss <1,2dB
  • Passband ripple <0,5 dB Adjacent Channel Isolation >30dB
  • Non-Adjacent Channel Isolation >45dB
  • Polarisation dependant loss 0,02dB
  • Directivity >50dB
  • Return loss >45dB
  • Polarisation Mode Dispersion <0,2ps

Physical size

  • 92mm x 98mm x 22mm
  • 200g

Ordering code: BarnMini-07-2935, BarnMini-07-3743

 Download Manuals

 Visit Website

Inquire about product detNon-Adjacent Channel Isolation >45dBails.
