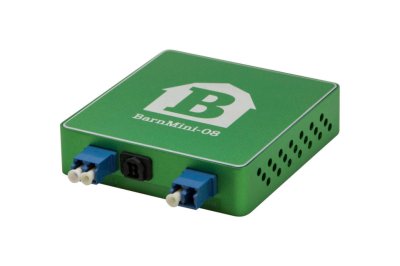

BarnMini – 08

Optical splitter

The BarnMini series are made of robust materials in an elegant design. BarnMini-08-1:2 and BarnMini-08-1:4 are devices that split the optical signal into 2 or 4 identical copies.

Typical use cases are distribution or signal duplication for redudancy; usually combined with CWDM optical multiplexers for maximum utilization of the fibers.

All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.

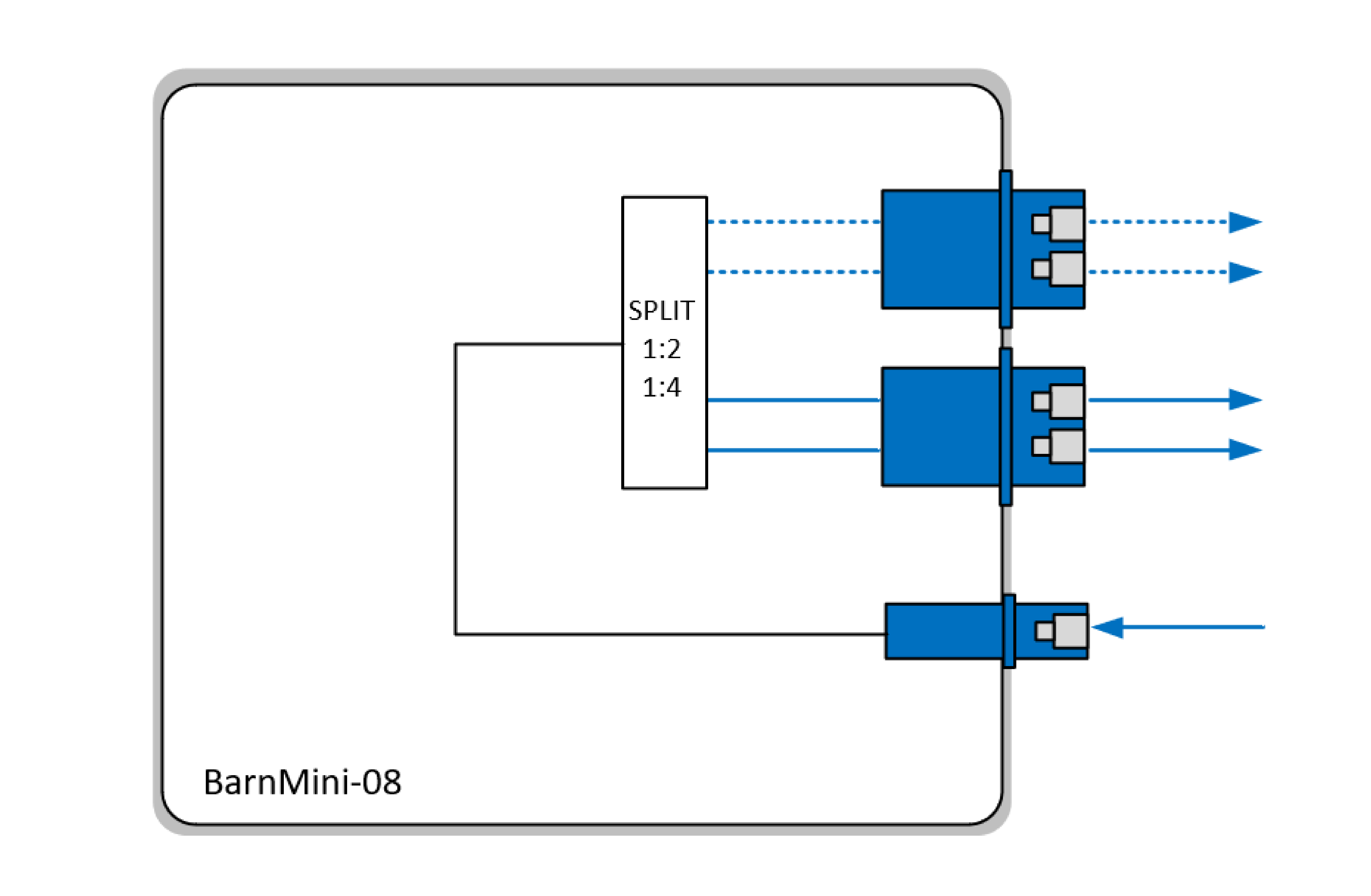

Block Diagram

Technical Specifications

Optical ports

• LC/PC connectors
• BarnMini-08-1:2: Insertion Loss <1,2dB + 3dB
• BarnMini-08-1:4: Insertion Loss <1,2dB + 6dB
• Adjacent Channel Isolation >35dB
• Non-Adjacent Channel Isolation >45dB
• Polarisation dependant loss <0,10dB

Physical size

• 92mm x 98mm x 22mm
• 200g

Ordering code: BarnMini-08-1:2, BarnMini-08-1:4
