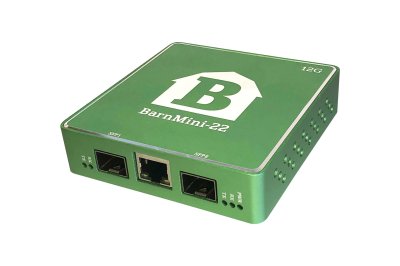

BarnMini – 22

SFP to SFP converter

The BarnMini series are made of robust materials in an elegant design. BarnMini-22 is the heir of BarnMini-02, increasing the maximum bandwidth up to 12G and adding remote monitoring via TCP/IP.

BarnMini-22 can be used for fiber conversion between multimode and single mode, Ethernet to fiber, CWDM fiber color conversion or any other combination of signals depending on the SFP selections.

BarnMini-22 is a Norwegian army knife   application can be changed on the fly by replacing the SFPs.

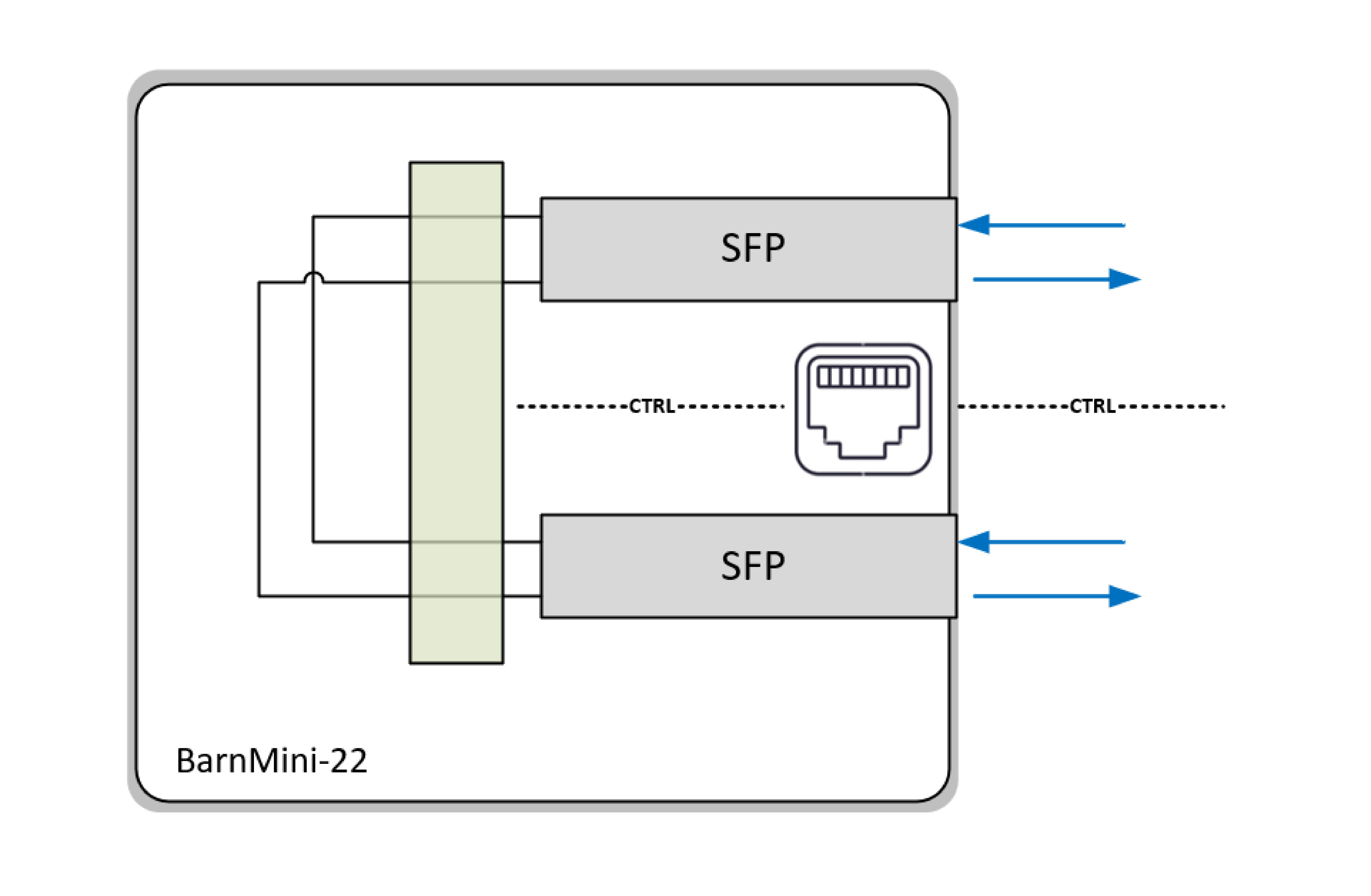

Block Diagram

Technical Specifications

Electrical ports

• 2x SFP+ port (small formfactor pluggable) for transceivers, MSA compliant and non-MSA compliant, up to 12Gbps
• SMPTE 259M, 292M, 372M, 424M, 372M, ST-2081, ST-2082, DVB-ASI, AES10 (MADI), AES3, IEEE 802.3ae
• Multirate reclocking of outputs 100Mbps 12Gbps
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules

Control port

• 12-24V DC, power supply included
• Redundant power supply available with BTF-Mini-16

Physical size

• 92mm x 98mm x 22mm
• 200g

Ordering code: BarnMini-22
