BarnMini – 05

SKU : BarnMini – 05

Product description

TCP/IP to RS422/RS485 and GPI/O

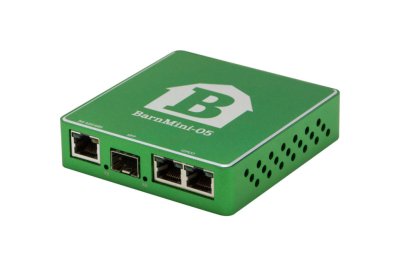

BarnMini-05 offers a compact way to convert an RS422/RS485 serial data, 4x GPI, 4x GPO to Ethernet.

The unit serves as an intelligent bridge for third-party devices. GPI and GPO are often used to transfer tally between two locations.

BarnMini-05 can control optical changeover switches such as BarnMini-06 in a redundancy setup.

All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.

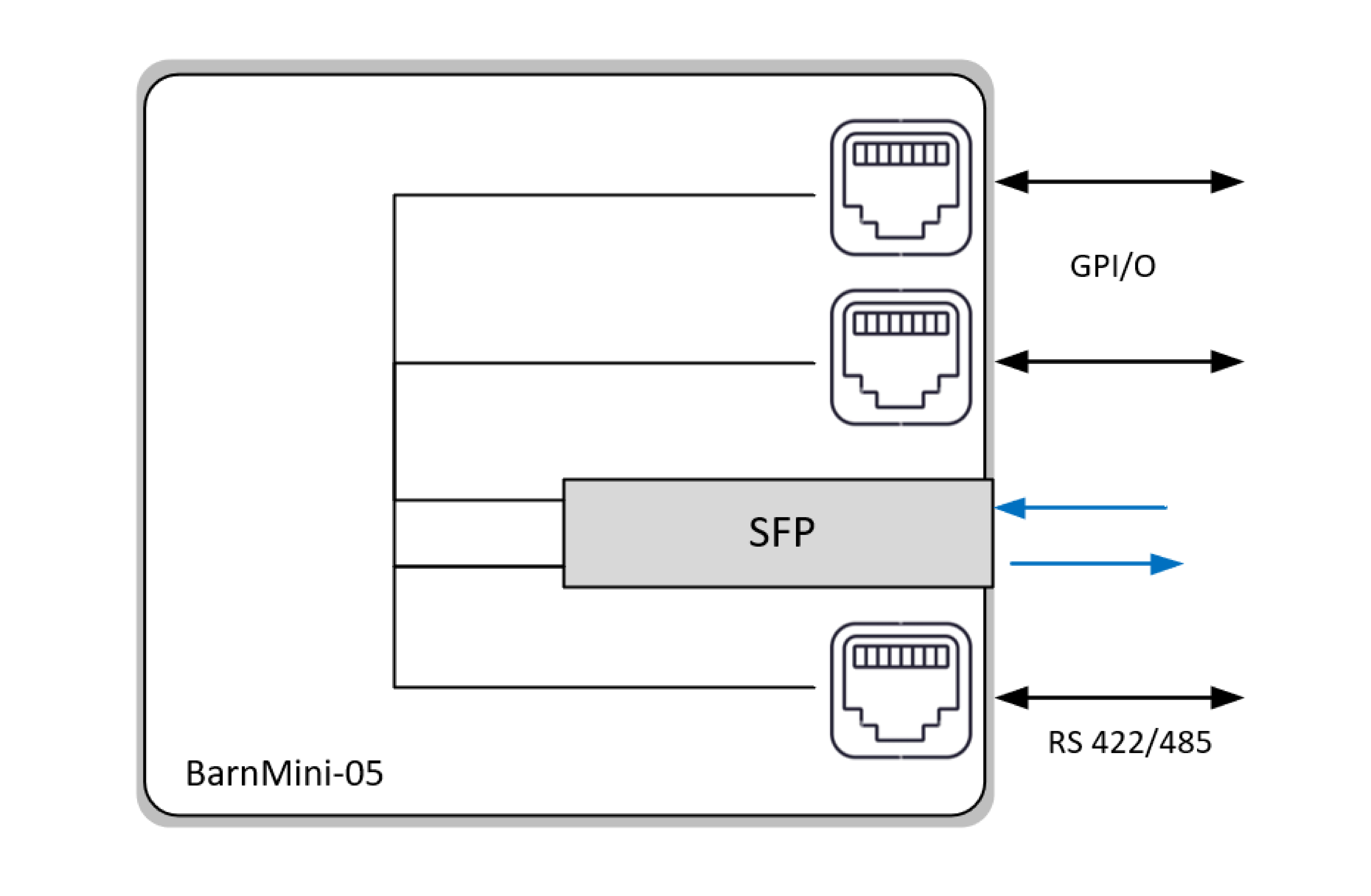

Block Diagram

Technical Specifications

Serial port

  • RJ45 connector
  • Selectable RS422 or RS485

GPIO ports

  • 2x RJ45 connector with 2x GPI and 2x GPO per connector
  • 4x GPI optocoupled; common floating 5V reference; connect to 0V reference to trigger
  • 4x GPO Relays; max. 50V AC/DC; max 100mA

Control

  • Telnet (same structure as BTF1-xx devices)
  • TSL (GPIO only)
  • UMD (GPIO only)

SFP port

  • 1x SFP port (small formfactor pluggable) for transceivers, MSA compliant
  • Recommended SFP module: BTSFP-GBase-CU
  • 100Mbit/s Ethernet (carried over SGMII)

Power supply

  • 12-24V DC, power supply included

Physical size

  • 92mm x 98mm x 22mm
  • 200g

Ordering code:  BarnMini-05
