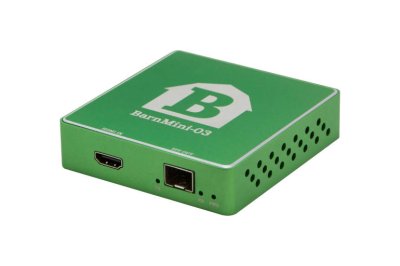

BarnMini – 03

HDMI to SFP (SDI) converter

The BarnMini series are made of robust materials in an elegant design. BarnMini-03 converts a HDMI signal to SDI via the SFP port. Optical fiber or coaxial copper cable can be used as transport medium depending on SFP inserted.

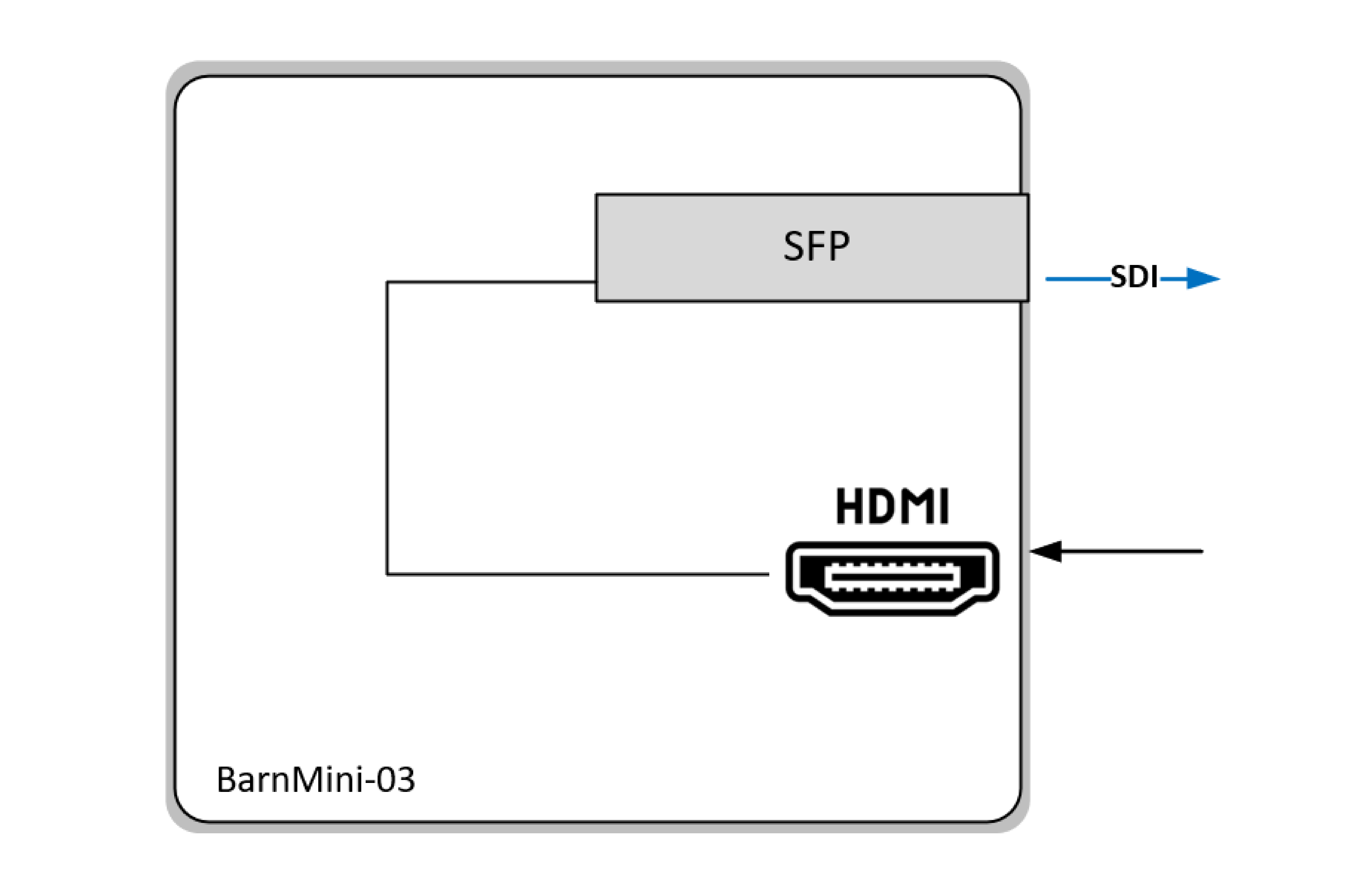

Block Diagram

Technical Specifications

SFP port

• 1x SFP port (small formfactor pluggable) for transceivers, MSA compliant, up to 3Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M
• Multirate reclocking of outputs 270Mbps 3Gbps
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules

HDMI port

• HDMI Standard Type A connector
• HDMI 1.4 input

Power supply

• 12-24V DC, power supply included

Physical size

• 92mm x 98mm x 22mm
• 200g

Ordering code: BarnMini-03
