BarnMini – 02

SKU : BarnMini – 02

Product description

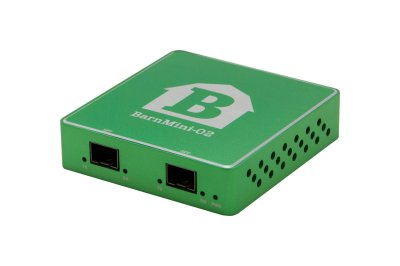

SFP to SFP converter

The BarnMini series are made of robust materials in an elegant design. BarnMini-02 can be used for fiber conversion between multimode and single mode, Ethernet to fiber, CWDM fiber color conversion or any other combination of signals depending on the SFP selections.

BarnMini-02 is a Norwegian army knife   application can be changed on the fly by replacing the SFPs.

All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.

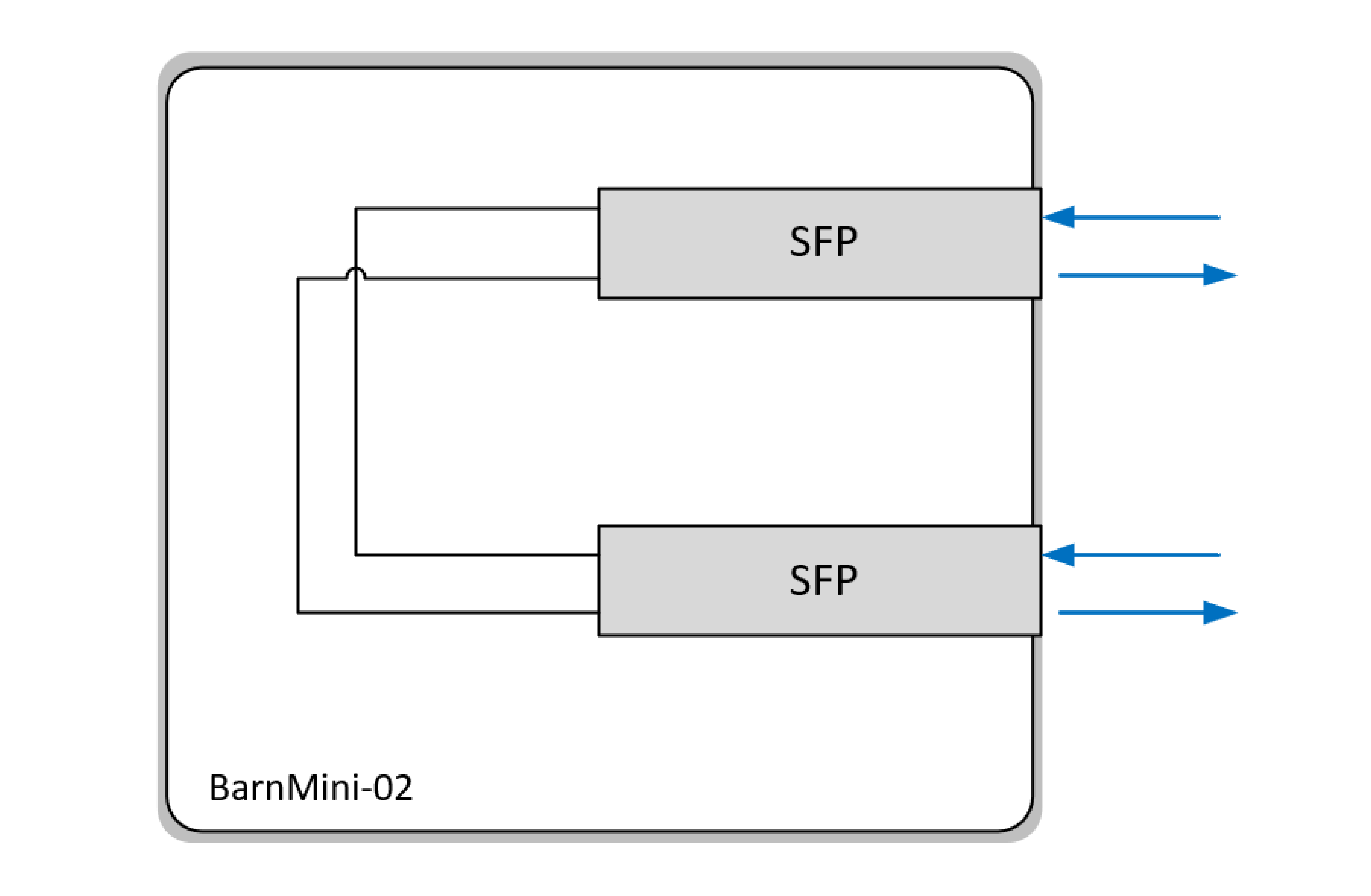

Block Diagram

Technical Specifications

Electrical ports

  • 2x SFP ports (small formfactor pluggable) for transceivers, MSA compliant, up to 3Gbps
  • SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
  • Multirate reclocking of outputs 270Mbps 3Gbps
  • SFP modules are hot pluggable/swappable
  • Single-mode, multi-mode or media-converter SFP modules

SFP port

  • 1x SFP port (small formfactor pluggable) for transceivers, MSA compliant, up to 3Gbps
  • SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
  • Multirate reclocking of outputs 270Mbps 3Gbps
  • SFP modules are hot pluggable/swappable
  • Single-mode, multi-mode or media-converter SFP modules

Power supply

  • 12-24V DC, power supply included

Physical size

  • 92mm x 98mm x 22mm
  • 200g

Ordering code: BarnMini-02
