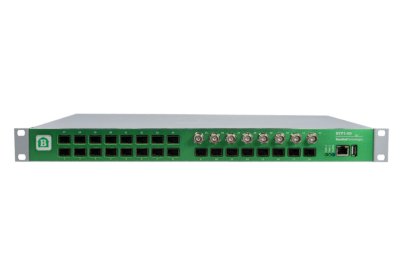

BarnOne – BTF1-06

SKU : BarnOne – BTF1-06

Product description

Designed to be the most flexible, rack-space saving and affordable infrastructure platform in the audio, video and communication businesses. Highly compact and equipped with an up to 32×32 cross-point router. Barnfind offer a number of configurations to combine BNC, SFP and CWDM fiber optical multiplexing.

This BarnOne frame accept SFPs following the MSA standard this includes optical, SDI copper, HDMI and RJ-45 Ethernet style SFP modules.

World-class redundancy handling with auto switching to any chosen input makes BarnOne one of the most comprehensive component for critical transmissions.

Block Diagram

Technical Specifications

Electrical ports

  • 8x bi-directional BNC ports
  • 75 OHM BNC connector
  • SMPTE 259M, 292M, 372M, 424M, DVB-ASI
  • Multirate reclocking of outputs 270Mbps 3Gbps
  • Automatic cable EQ (Belden 1694A) 270Mbps-250m, 1.5Gbps-140m, 3Gbps-80m

SFP ports

  • 24x SFP ports (small formfactor pluggable) for transceivers, MSA compliant, up to 3Gbps
  • SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
  • SFP modules are hot pluggable/swappable
  • Single-mode, multi-mode or media-converter SFP modules
  • Multirate reclocking of outputs 270Mbps 3Gbps

Power supply

  • 12V DC 120W power supply included
  • Redundant power supply optional

Physical size

  • 445mm x 280mm x 43,5mm (17.5 x 11 x 1.7)
  • 3.8 kg

Includes

  •  BTF1-06 mainframe, power supply 12V DC

Ordering code: BTF1-06
