BarnOne – BTF1-01

Designed to be the most flexible, rack-space saving and affordable infrastructure platform in the audio, video and communication businesses. Highly compact and equipped with an up to 32×32 cross-point router. Barnfind offer a number of configurations to combine BNC, SFP and CWDM fiber optical multiplexing.

This BarnOne frame accept SFPs following the MSA standard this includes optical, SDI copper, HDMI and RJ-45 Ethernet style SFP modules.

World-class redundancy handling with auto switching to any chosen input makes BarnOne one of the most comprehensive component for critical transmissions.

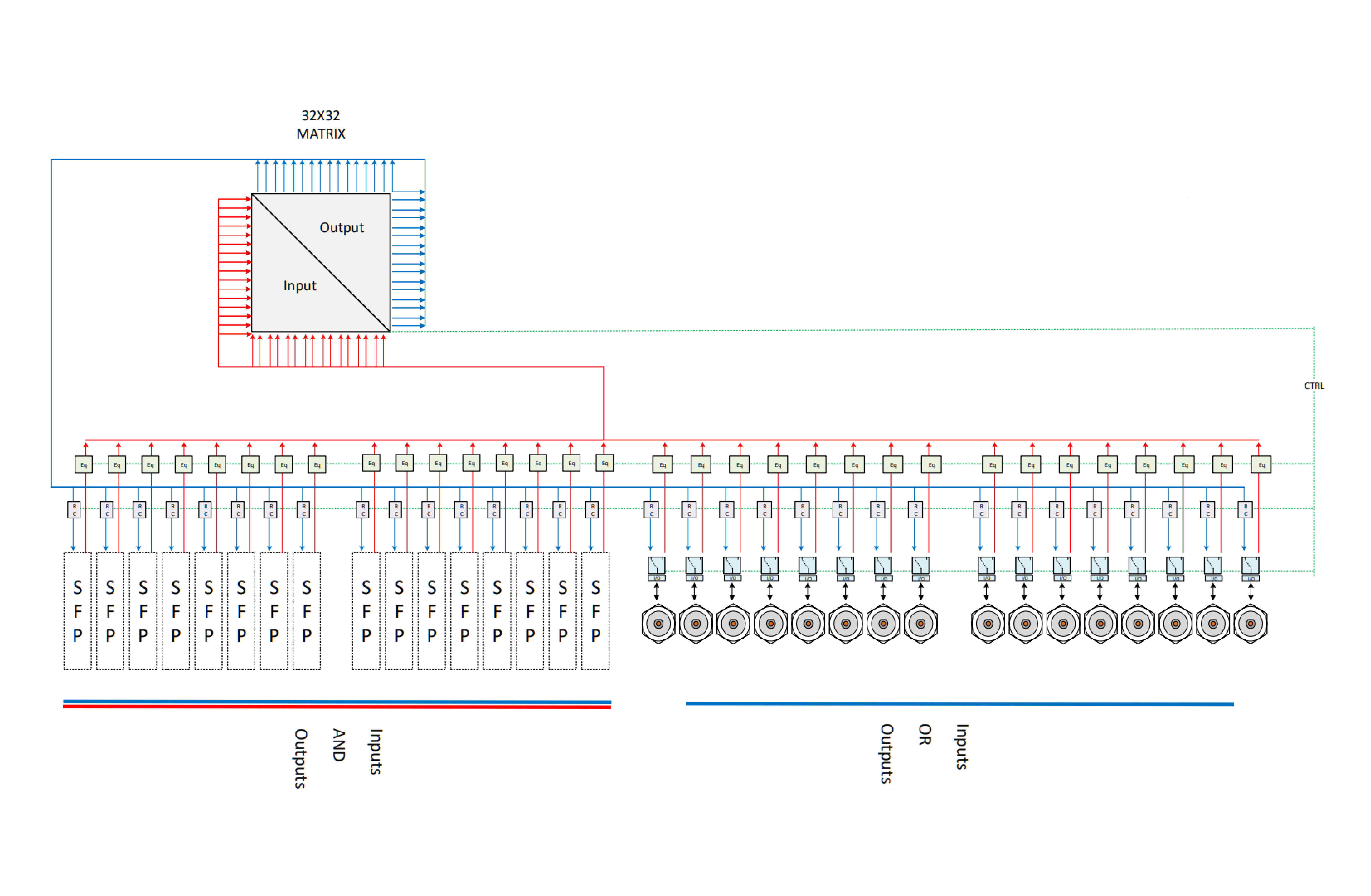

Block Diagram

Technical Specifications

SFP ports

• 16x SFP ports (small formfactor pluggable) for transceivers, MSA compliant, up to 3Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules
• Multirate reclocking of outputs 270Mbps 3Gbps

Power supply

• 12V DC 120W power supply included
• Redundant power supply optional

Physical size

• 445mm x 280mm x 43,5mm (17.5 x 11 x 1.7)
• 3.8 kg

Includes

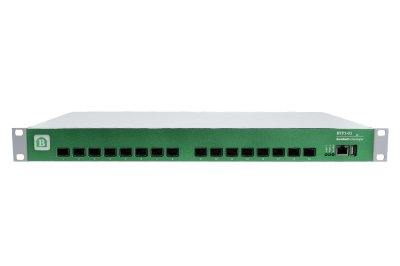

• BTF1-01 1RU frame
• Power supply 12V DC (110-240V AC)

Ordering code: BTF1-01
