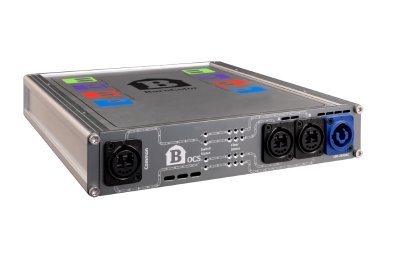

The BarnPalette – OCS

Optical Changeover for bi-directional signal transmissions

Designed to ensure uninterrupted fiber connectivity in mission-critical applications. This system comprises two units connected by dual fiber strands primary and backup. The OCS continuously monitors the primary fiber, instantly switching to the backup strand if any issues are detected. This ultra high-speed transition guarantees maximum uptime and reliability, making it an indispensable tool for any high-stakes environment.

We recommend using single mode fibers when linking the BarnColor and BarnPalette devices.

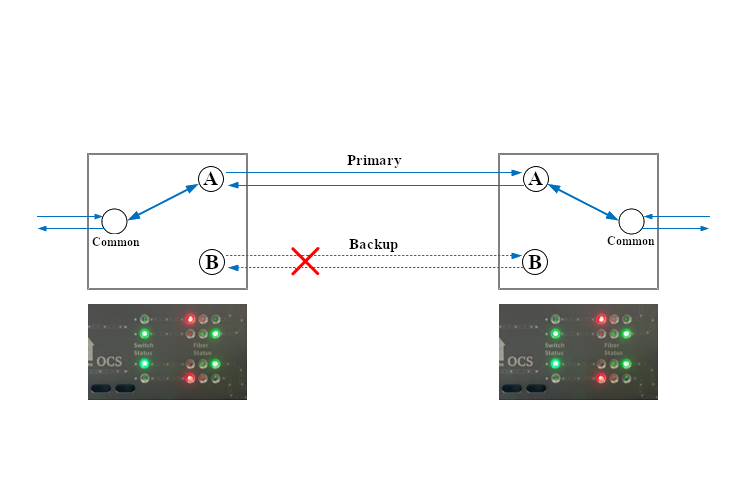

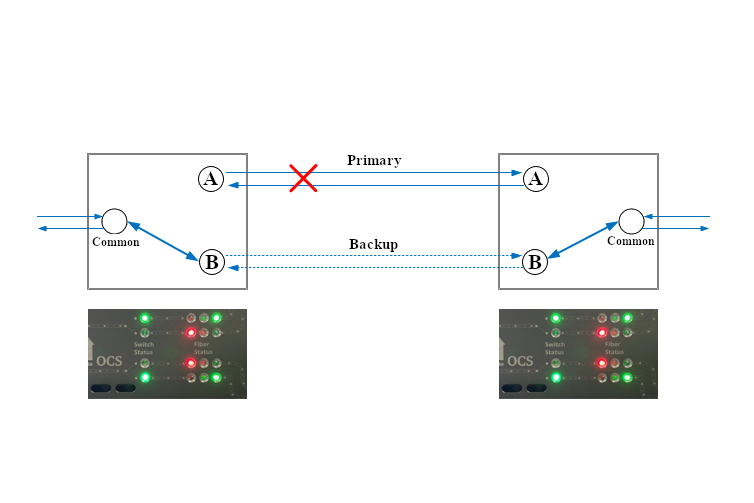

Example

Technical Specifications

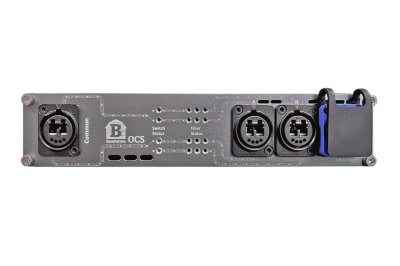

Fiber port (Common, Ch. A and Ch. B )

• Neutrik opticalCON DUO, also compatible with duplex Single Mode fiber LC-LC

Power plug

• Neutrik powerCON or TRUE1
• 100-240VAC, 15Watt

Physical size

• 223mm x 277mm x 44mm (8.8 x 10.9 x 1.7)
• 1.4 kg

Order codes: BarnPalette-OCS
