EXBOX.RAV

SKU : EXBOX.RAV

Product description

EXBOX.RAV is an Audio-over-IP to MADI converter running on DirectOuts well-proven RAVENNA (AES67/ST 2110-30 / -31) implementation. It supports NMOS for stream and device discovery and connection management.

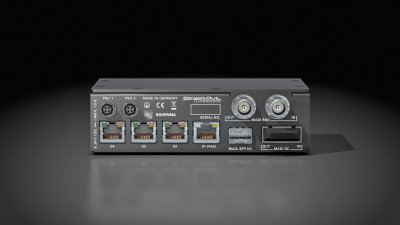

Four gigabit ports with an internal switch and PoE, plus three MADI ports in BNC, SC and SFP format offer bidirectional conversion and routing of 64 audio channels, with built-in SRC functions (FastSRCTM) and automatic redundancy switching (EARSTM).

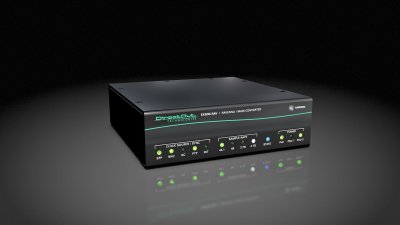

The handy size of the popular EXBOX series (1/3 of 19), combined with the rock-solid housing and redundant power supplies, makes EXBOX.RAV a compact and affordable solution to migrate baseband audio to IP.

As a successful participant of the JT-NM Tested program EXBOX.RAV is listed in the JT-NM Tested Catalog as a device aligning with the SMPTE 2110 standards.

Audio Streaming

Up to 32 streams with a total number of 64 audio channels are supported. The device complies with AES67, ST 2110-30 / -31, and supports all ST 2022-7 classes.

All-Round Functionality

EXBOX.RAV offers highest flexibility as it provides three MADI ports of different interface types:

  • optical SC (single-mode or multi-mode)
  • coaxial (BNC)
  • SFP

The Small Form Factor Pluggable cage can be fitted with any SFP module suitable for the particular application.

FastSRCTM

The FastSRCTM is a low latency sample rate converter, switchable for the audio network I/O, and ensures seamless exchange between MADI and IP when both sources are not synchronised.

EARSTM

Enhanced Automatic Redundancy SwitchingTM is a system to prevent interruption of the output signal. It uses either the proven BLDSTM technology or pilot tone triggering. A logic monitors the condition of the trigger signal on the audio network input. In case of a failure it switches automatically to the defined backup input (audio network or MADI).

Built-in Switch

Two independent NICs can be connected to four network ports of the built-in switch, supporting redundant audio streaming as per ST 2022-7.

Remote control

Device functions of EXBOX.RAV, such as the channel based routing matrix, FastSRCTM or EARSTM are accessible via globcon and a browser UI. NMOS standards IS-04 and IS-05 are supported for stream and device discovery and connection management.

Safe operation

The device can be powered by up to two external power-supplies as well as PoE (Power over Ethernet).

Rack-Ready

Each EXBOX can be mounted into a standard 19-rack by using the optional kit BOXMOUNT.XL. Up to three devices may fit side-by-side within 1 RU.
