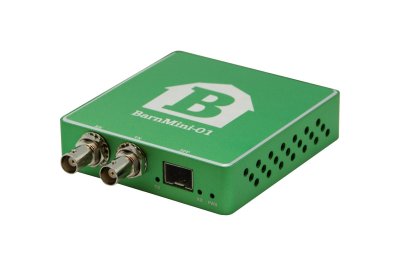

BarnMini – 01

BNC to SFP converter

The BarnMini series are made of robust materials in an elegant design. With a transparent connection between the in/out BNC connectors and the SFP, BarnMini-01 converts signals in both directions.Depending on the SFP being used, it converts signals to/from SDI optical, Analog Video SDI, HDMI SDI.

All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.

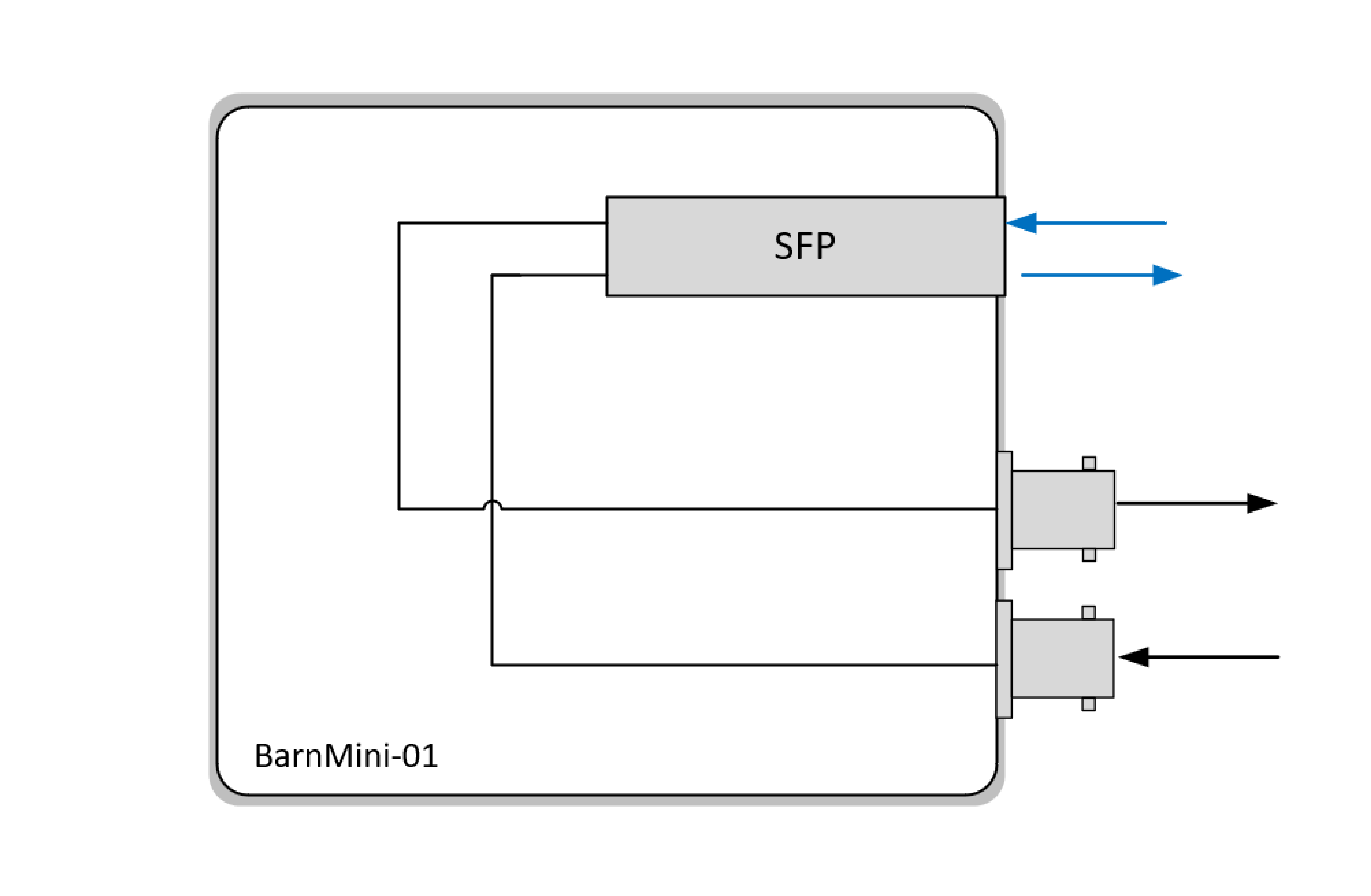

Block Diagram

Technical Specifications

Electrical ports

• 1x TX BNC port
• 1x RX BNC port
• 75 OHM BNC connector
• SMPTE 259M, 292M, 372M, 424M, DVB-ASI
• Multirate reclocking of outputs 270Mbps 3Gbps
•  Automatic cable EQ (Belden 1694A) 270Mbps-250m, 1.5Gbps-140m, 3Gbps-80m

SFP port

• 1x SFP port (small formfactor pluggable) for transceivers, MSA compliant, up to 3Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
• Multirate reclocking of outputs 270Mbps 3Gbps
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules

Power supply

• 12-24V DC, power supply included

Physical size

• 92mm x 98mm x 22mm
• 200g

Ordering code: BarnMini-01

BarnMini-01 is not a stocked item and is only available by special requests. Please use the successor BarnMini-11 which is capable of up to 12G-SDI signals.
